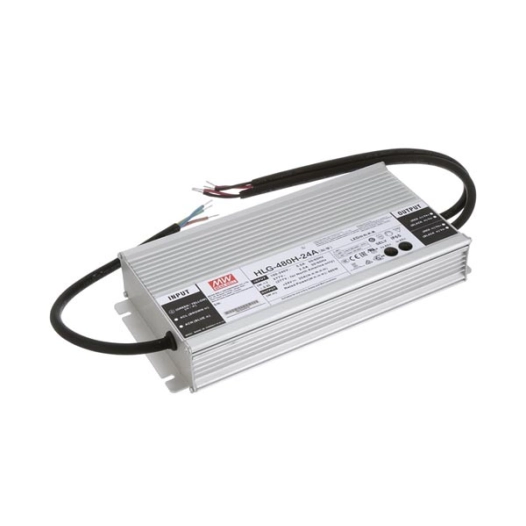

Description
Constant Voltage + Constant Current mode output • Metal housing with class design • Built-in active PFC function • IP67 / IP65 for indoor or outdoor installations • Function options: output adjustable via potentiometer,3 in 1 dimming (dim-to-off, isolated design) , smart timer • Typical lifetime> 62000 hours • 7 years warranty(Note.9output: •• DC voltage: 24 V •• constant current region: 12 V to 24 V •• rated current: 20 A •• rated power: 480 W •• ripple & noise (max.): 200m VP-p •• voltage adj. range: 20.4 - 25.2 V •• current adj. range: 10 - 20 A •• voltage tolerance: ± 1.0 % •• line regulation: ± 0.5 % •• load regulation: ± 0.5 % •• setup, rise time: 500ms, 80ms 115VAC/230VAC • entrée: •• plage de tension (Note 5): 90-305 VAC 127-431 VDC •• plage de fréquence: 47-63 Hz •• facteur de puissance: PF >/= 0.98/115 VAC PF >/= 0.97/230 VAC PF >/= 0.95/227 VAC at full load •• total harmonic destortion: THD < 20% •• efficiency (230 VAC): 94% •• efficiency (277 VAC): 94.5% •• courant CA: 5 A / 115 VAC •• courant d'appel: cold start 75 A / 230 VAC •• courant de fuite: < 0.75 mA / 277 VCA • protection: •• surcharge: 95-108% •• court-circuit: limiteur à courant constant, rétablissement automatique du système •• surtension: 27-33 V •• surchauffe: shut down output voltage, re-power on to recovery • environnement: •• working temperature: -40 °C to 90°c •• température max. boîtier: 90°C •• working humidity: 20 - 95% RH non-condensing •• coefficient thermique: ± 0.02 % / °C (0 °C to 60 °C) •• vibration: 10 to 500 Hz, 5 G 12 min. / 1 cycle, period for 72 min. each along X, Y, Z axes • safety: •• safety standards: UL8750(typeHL), CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384,GB19510.14,GB19510.1,IP65 or IP67 EAC TP TC 004 ,KC61347 1, KC61347 2 13, J61347-1(H29), J61347-2-13 approved •• withstand voltage: /P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC •• isolation resistance: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH •• EMC emission: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load 50%) , BS EN/EN61000-3-3,GB17743, GB17625.1?,EAC TP TC 020,KC KN15,KN61547( ),J55015(H29)(for Blank/A-type)except for AB,Dx,D2-typ •• EMC immunity: Compliance toBS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV,Line-Line 2KV), ,KC KN15,KN61547( ),J55015(H29)(for Blank/A-type) • autres: •• MTBF: 345.5K hrs min. Telcordia SR-332(Bellcore) , 95.3K hrs min. MIL-HDBK-217F (25)°C •• dimension: 262*125*43.8mm (L*W*H) •• emballage: 2.8Kg,4pcs/12.2Kg/0.55CUFT
