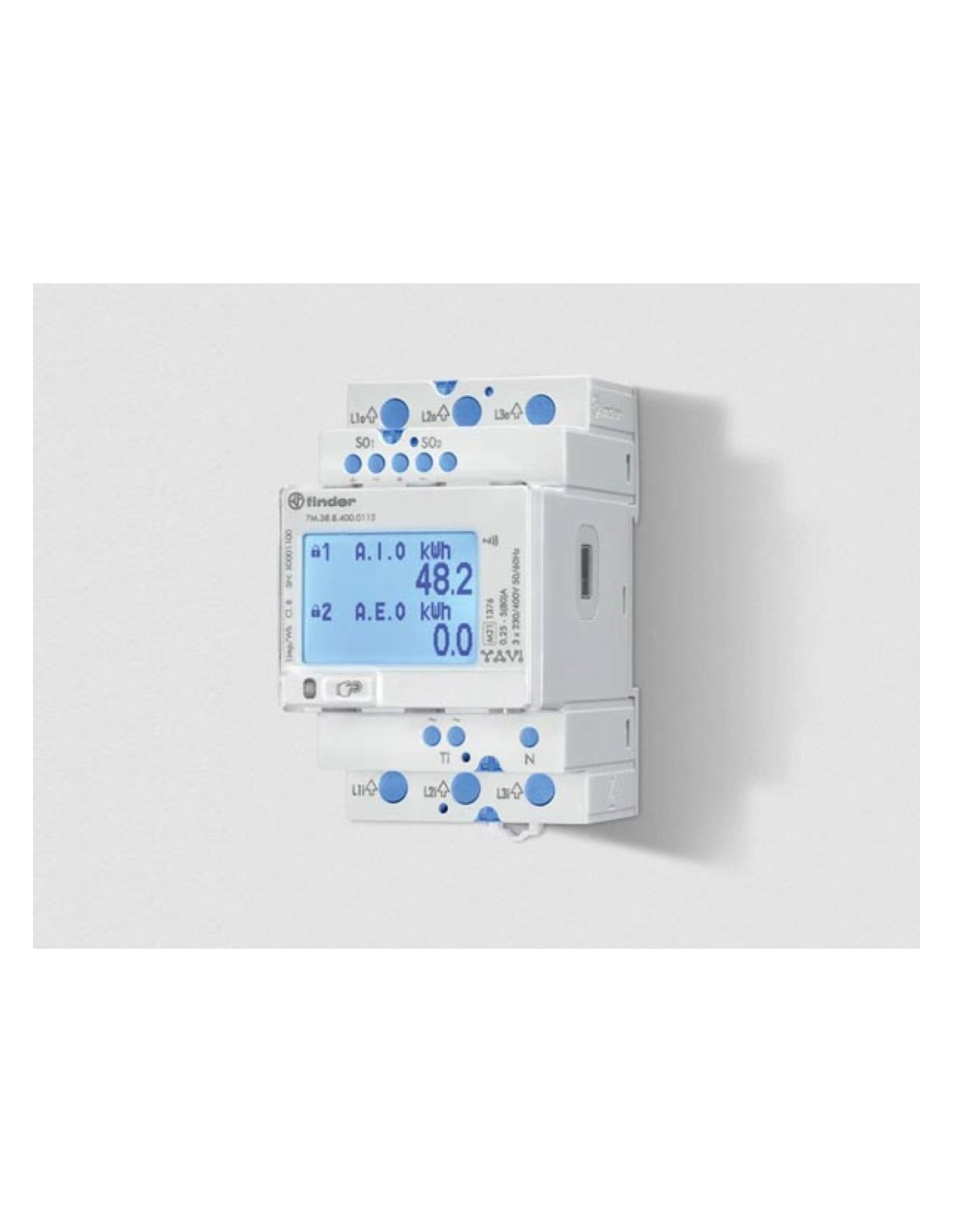

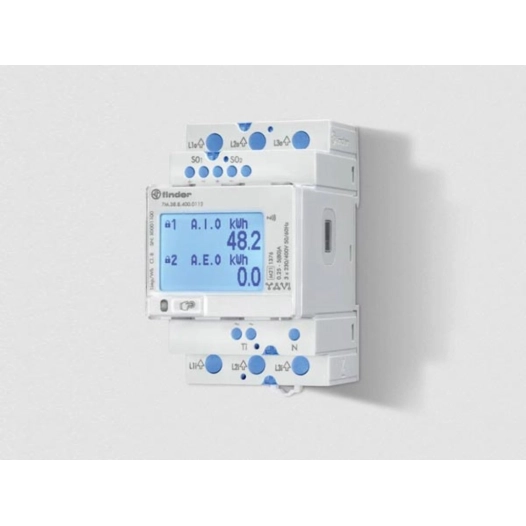

Domotique Professionnelle Modules d'entrée Modules d'entrée pour Rail DIN Suitable for three phase system (3 or 4 wire) or single-phase system • Reference current 5 A (80 A Maximum) • Dual S0 outputs, IR communication port and NFC technology • MID certified up to 80 A @ 70°C • Display of total or partial (resettable) consumption: kWh, kVAh, kvarh • 2 active energy MID counters + 2 reactive energy nationally certified counters • 16 resettable counters • Scroll to view the following instantaneous values: V, A, PF, kW, kVA, kvar, Hz, THD V, THD A, phase angle and direction of power flow • Matrix backlit LCD display • Multi-function touch button • Active energy accuracy Class B according to EN 50470-3 (MID) • Reactive energy accuracy Class 2 to EN 62053-23 • Two SO pulse outputs for remote energy monitoring according to EN 62053-31 • Sealable tamperproof terminal shield • Protection category II • 35 mm rail (EN 60715) mount
General Specs: •• Reference current In: 5 A •• Maximum current Imax: 80 A •• Starting current Ist: 0,02 A •• Minimum measured current Imin: 0.25 A •• Current range (within accuracy class): 0.5…80 A •• Maximum peak current: 2400 A (10 ms) •• Supply (& monitored) voltage Un: 3 x 230/400 V AC •• Operating range: (0.8…1.15) UN •• fréquence: 50/60 Hz •• Power consumption: <= 1 W, 7.5 VA •• afficheur: Matrix - LCD •• Max. totalizing count: 999 999.9 kWh •• Min. increment: 0.1 kWh •• LED pulses per kWh: 1000 •• LED pulse length: 4±0.5 ms • S0+/S0- pulse output: •• Number/Type: 2 opto-isolated output •• Voltage range (conforming to EN 62053-1): 3.3…27 V DC •• Maximum current (conforming to EN 62053-1): 1…27 mA •• Pulses per kWh: 500 Imp/kWh •• Pulse length: 32 ± 2 ms •• longueur max. du câble: 1000 m • Données Techniques: •• Accuracy class IEC EN 50470-3: B •• Accuracy class IEC EN 62053-23: 2 •• Ambient temperature (Within accuracy class): -25…+70 °C •• Protective class: II •• Protection category Housing: IP50 •• Protection category Terminals: IP20 •• normes: CE •• Dimensions (LxWxH): 63.9 x 52.5 x 96.4 mm
